ELM327 USB V1.5 FTDI 18F2480 chip for Ford HS CAN/MS CAN
$14.50
If you have any questions, please do not hesitate to contact us, below is our contact information: WhatsApp: +086-15813739636 Skype: shun2008 Email: steve@topobdii.com
Description
Latest Multi-Protocol Support:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1939
SAE J1850 PWM (Found on many Ford vehicles)
SAE J1850 VPW (Found on many GM vehicles)
Vehicle Coverage:
Works on all OBDII Vehicles (1996+ in USA) and EOBD vehicles (Petrol cars from 2001+ and diesel cars from 2003/2004 in Europe)
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant
With the appropriate software, perform the following operations:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display code descriptions with over 3000 universal code definitions in the database
Clear diagnostic trouble codes and turn off check engine lights
Display and record real-time sensor data, including:
Engine RPM
Coolant Temperature
Calculated Load Value
Fuel System Status
MPH Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen Sensor Voltages/Associated Short Term Fuel Trims
Fuel System Status
Fuel Pressure
+ More
Specifications:
Connection: USB
Baud Rate: 9600 or 38400
Indicator LEDs: OBD Tx/Rx , RS232 Tx/Rx , Power
Processor: ELM327
Voltage: 12V (integrated protection)
this is the elm 327 usb The function of the normal

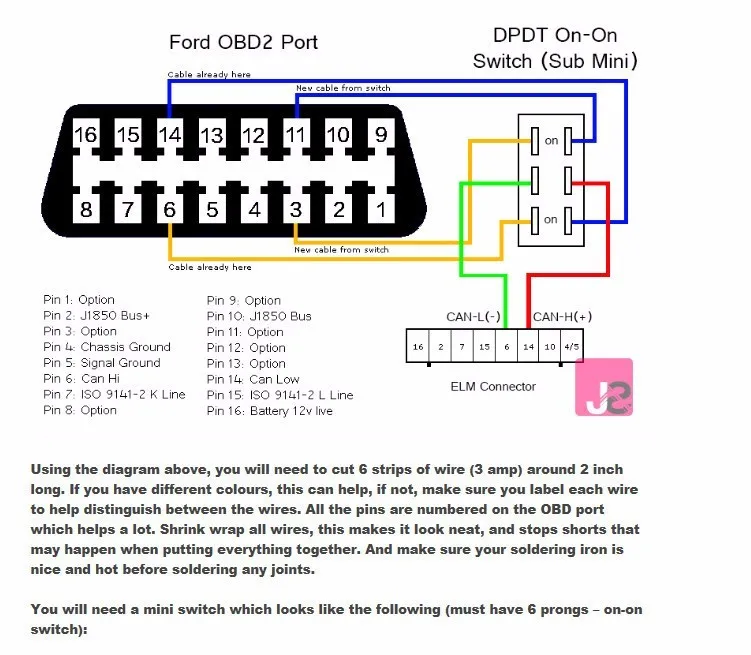

As there are two types of network in the new model Fords (as with most other cars), there are two different ways how these connections have to be interpreted. The two systems are known as CAN-High and CAN-Low (CAN+ CAN-) – this can also be known as High Speed CAN Bus (HS CAN) and Mid-Speed CAN Bus (MS-CAN).

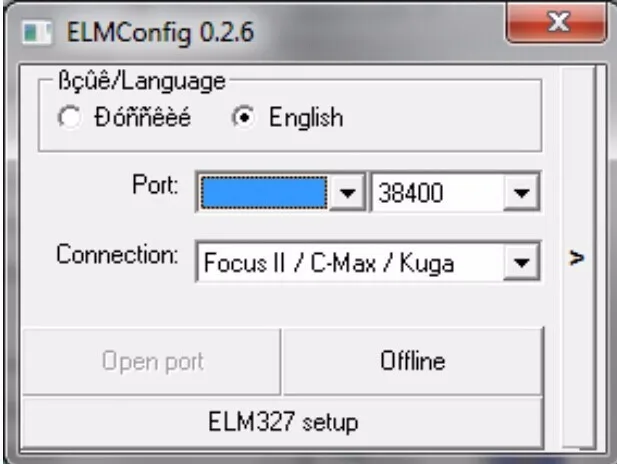

This program (EMLConfig) will allow you to modify ECU features, to activate or de-activate options which were only accessible by putting your car into the local Ford dealership.
Now this can be a very dangerous tool, so use this with care – make sure you make a backup of each of the settings before you write to your ECU. I will explain how this is done further into the guide.

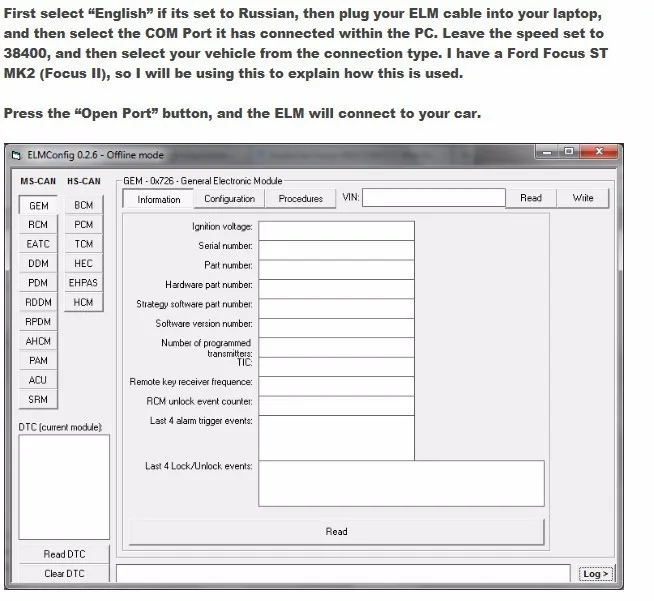

When you open ELMConfig, you will be presented with the following screen:
Additional information
| Weight | 0.2 kg |
|---|
