ELM327 Bluetooth V1.5 FTDI 18F25K80 Car Diagnostic Tool For Android/IOS/Symbian OBDII Protocol
$7.50
If you have any questions, please do not hesitate to contact us, below is our contact information: WhatsApp: +086-15813739636 Skype: shun2008 Email: steve@topobdii.com
Description
Features:
1. Works on Android/ Symbian/Windows. Please use Android system V4.1 to V4.3 version.

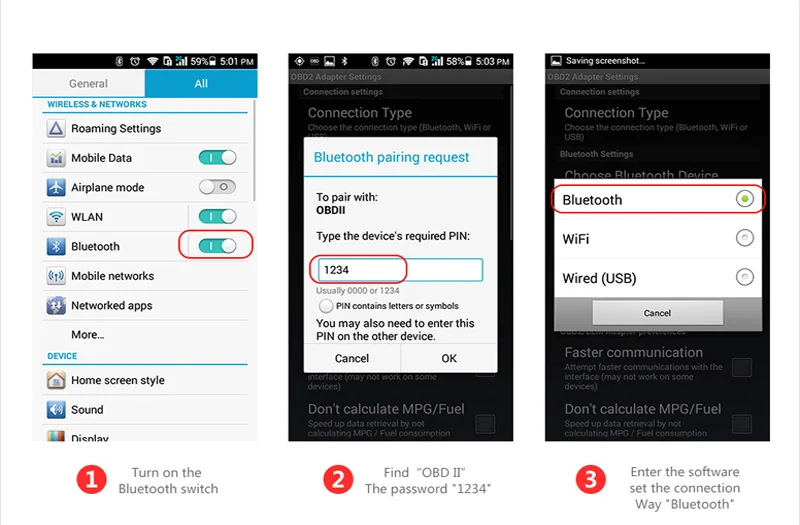

2. Bluetooth Passwords: 1234
3. Latest Hardware Version V2.1.
4. If the SW is broken, pls contact me. I will send you the link to download sw. Sorry for the inconvenience to you.
5. This one CAN’T support for Diesel or Trucks and it can’t be used on IOS system.
6. Latest sw version supports 9 kinds of OBDII protocols.
7. It has been tested before shipping. It can work well as the picture shows:
Features of ELM327 Bluetooth V1.5 OBDII Diagnostic Tool
bluetooth ELM327 is the newly developed wireless scan tool. It supports 9 kinds of OBDII protocols -Works with all OBD2 compliant vehicles -Wireless (Bluetooth) SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Bluetooth ELM 327 Functions:
– Read diagnostic trouble codes,both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). – Clear trouble codes and turn off the MIL (“Check Engine” light)
Display current sensor data, including:
– Engine RPM
– Calculated Load Value
– Coolant Temperature
– Fuel System Status
– Vehicle Speed
– Short Term Fuel Trim
– Long Term Fuel Trim
– Intake Manifold Pressure
– Timing Advance
– Intake Air Temperature
– Air Flow Rate
– Absolute Throttle Position
– Oxygen sensor voltages/associated short term fuel trims
– Fuel System status
– Fuel Pressure
– Many others
Tips:
This item can only be used on windows XP computer, can not be used on windows 7. The Bluetooth ELM327 has no cable, it works via bluetooth wirelessly.

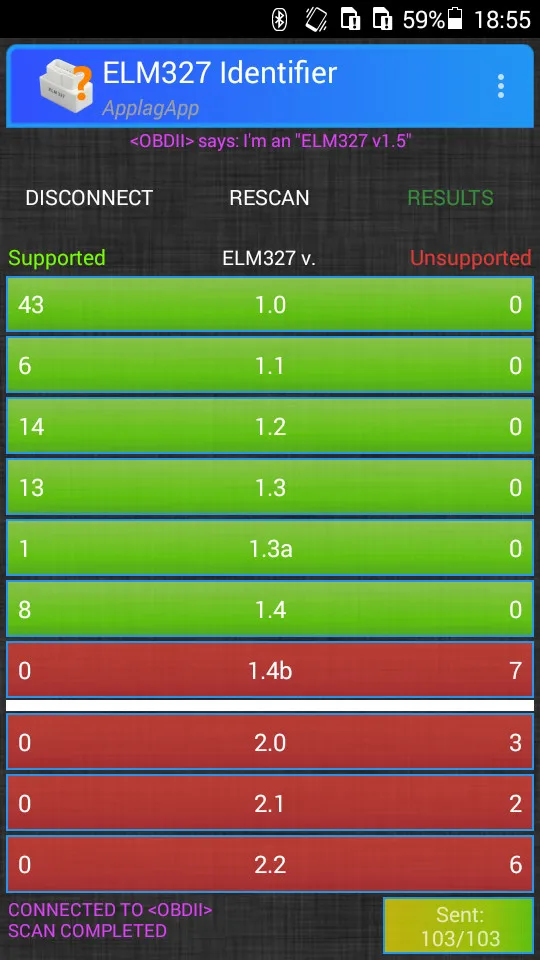

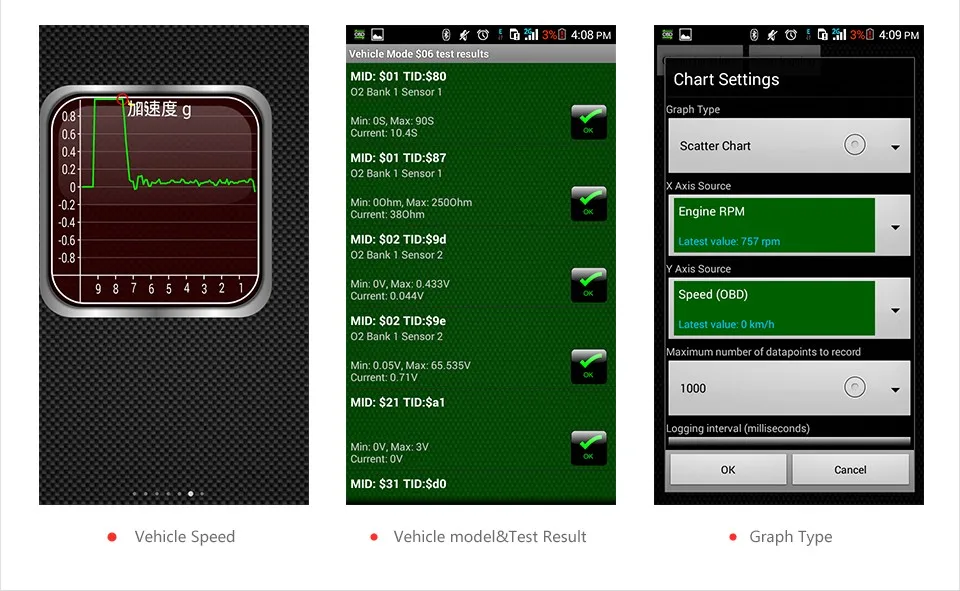

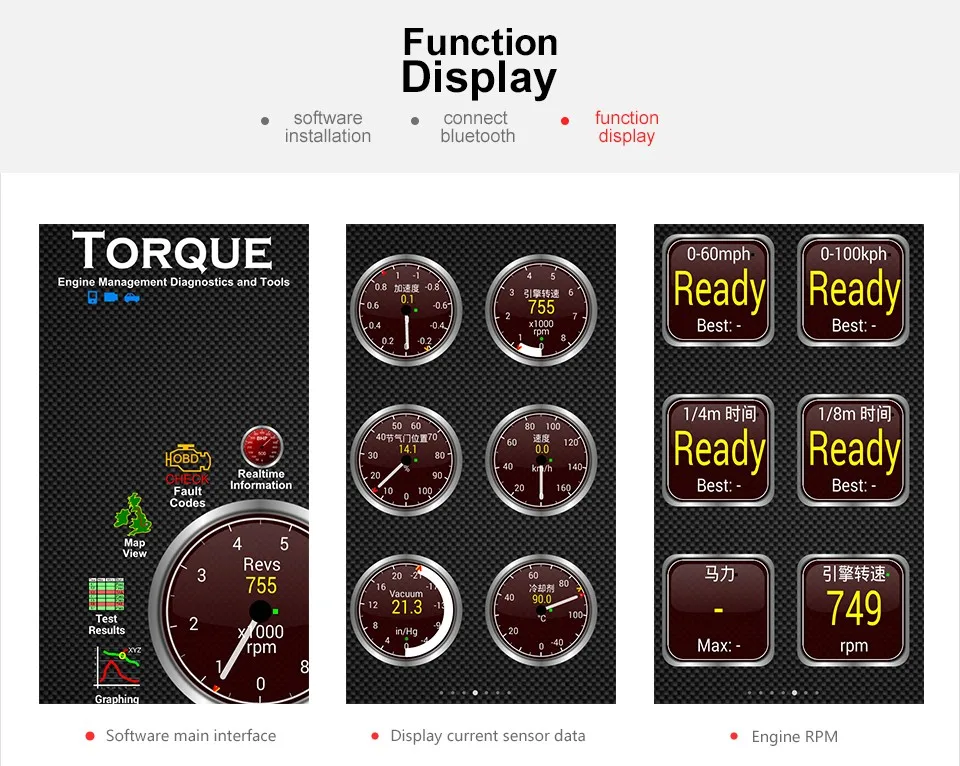

The Following Picture shows the SW run on Android Torque Phone:
Additional information
| Weight | 0.1 kg |
|---|
